Home » A-BODY » A-BODY TRANSMISSION » Clutch


67-76 A-BODY Small Block 4 Speed Z-Bar
Product ID: 212-A

Details

New reproduction 4 speed Z bars for small block V-8 A-body vehicles. Replace your old, damaged or missing 4 speed Z bar with our reproductions made to original factory specifications to function just like originals.

Tube Length : 7"

Bellhousing : 10-1/2"
Price: $75.00

A,B, E Body Fork Push Rod
Product ID: 225-F

Details

New reproduction fork push rod for A-body, B-body and E-body vehicles. Replace your old, damaged or missing fork push rod with our reproduction made to original factory specifications to function just like originals.
Price: $25.00

CLUTCH BELL CRANK BALL STUD
Product ID: BS-1

Details

Clutch Bell Crank Ball Stud for All Manual Trans Applications. Mounts to the Frame Rail Mounting Bracket. Zinc Plated to Resist Corrosion & Provides Proper Appearance. Includes Mounting Nut & Flat Washer.
Price: $17.00

CLUTCH BELL CRANK BALL STUDS
Product ID: BS-3

Details

Clutch Bell Crank Ball Studs for Small Block Manual Transmission 1968-71 A-Body Applications. This Ball Stud Bracket Assy Mounts to the Bellhousing, & the Ball Stud to the Frame Rail Mounting Bracket. Zinc Plated Ball Stud & Zinc Chromate Bracket Assy Resist Corrosion & Provide Proper Appearance.
Price: $30.00

CLUTCH BELL CRANK BELL HOUSING BALL STUD BRACKET
Product ID: BS-3BH

Details

Clutch Bell Crank Ball Stud Bracket for Small Block Manual Transmission A-Body Applications. This Ball Stud Bracket Assy Mounts to the Bellhousing. Zinc Chromate Bracket Assy Resists Corrosion & Provides Proper Appearance. Bracket Fits 1968-71 Small Block Bellhousings.
Price: $20.00

CLUTCH FORK RETURN SPRING A-BODY
Product ID: 480

Details

Used on Small Block A-Body applications and 1962-65 Big Block B-Body applications.  Heavy duty spring used to keep tension between the clutch fork and adjusting rod.  Reference Chrysler part number 2461480.

Price: $5.00

CLUTCH FORK ROD ADJUSTING NUT
Product ID: 979

Details

Special Purpose Nut Used to Lock the Position of the Clutch Fork Rod Washer & Insulator. Zinc & Wax Finished for the Proper Appearance. After Proper Adjustment is Attained, Use a Hammer & Punch to Depress One of the Nut Shoulder Sections on to the Flat Surface of the Clutch Fork Actuator Rod. One is Required. Refenence Chrysler # 1407347, 6030979

Price: $3.00

CLUTCH FORK ROD INSULATOR
Product ID: 412

Details

Injection molded from high durometer urethane for increased service life & improved clutch pedal feel.  Installs into clutch release fork.  Reference Chrysler part number 2461482, 3467234, 4019412.

Price: $8.95

CLUTCH FORK ROD WASHER
Product ID: 483

Details

Conical Faced Washer That Backs the Clutch Fork Insulator. Finished in Black Oxide as Original. One Required.
Price: $6.00

Clutch Pedal Push Rod Boot
Product ID: 2266783R

Details

New reproduction pedal push rod boot for A-body, B-body, C-body, E-body and Truck vehicles. Replace your old, damaged or missing pedal push rod boot with our reproductions made to original factory specifications to function just like originals.

Price: $7.95

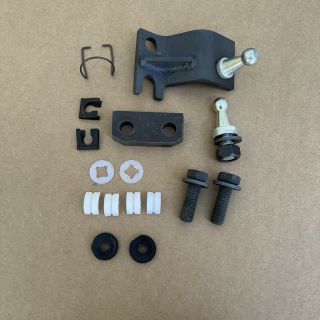

CLUTCH PIVOT SHAFT SERVICE KIT A-BODY
Product ID: A-ZKIT

Details

Clutch Pivot Shaft Service Kit. All Components Necessary to Service 1968-71 A-Body Clutch Pivot Shafts (Z-Bars). Includes Both Frame Side with Nut & Washer & Bellhousing Side Ball Studs, Two Ball Stud Seals, Two Spring Retainers, Two Nylon Cushion Washers, Four Nylon Ball Stud Bearing Halves, & One Pivot Shaft Bearing Retainer Wire.
Price: $65.00

CLUTCH ROD SERVICE KIT A-BODY BB. BLK
Product ID: 451

Details

Rod Kit, Used on 1967-76 A-Body Big Block Applications. Complete with Adjusting Rod, Special Lock Nut, Clutch Fork Return Spring, Wear Washer, Spring Retainer, Conical Washer, & Clutch Fork Insulator.
Price: $45.00

CLUTCH ROD SERVICE KIT A-BODY SM. BLK
Product ID: 448

Details

Rod Kit, Used on 1967-76 A-Body Small Block Applications. Complete with Adjusting Rod, Special Lock Nut, Clutch Fork Return Spring, Wear Washer, Spring Retainer, Conical Washer, & Clutch Fork Insulator.

Price: $49.00

GEARSHIFT CONTROL TORQUE BRACKET-LOWER
Product ID: 60401

Details

Gearshift Control Torque Bracket, Lower w/Auto Trans Floor Shift. Used on 1966-74 A- & C-Body, 1966-70 B-Body, & 1970 E-Body Applications with Automatic Transmission & Floor Shift. Comes Complete with Correct Conical KEPS Nuts & Correct Style Bushing. Mounts to Automatic Transmission Housing & is Necessary for All Floor Mounted Shifter Applications.
Price: $35.00

GEARSHIFT CONTROL TORQUE SHAFT BUSHING
Product ID: 420

Details

Gearshift Control Torque Shaft Bushing. Used on 1967-74 A-, B-, C-, & E-Body Applications with Automatic Transmission. Two Bushings Required for Both Column & Floor Shifted Automatic Transmission Equipped Cars. Also, Two Bushings Required for 1970 4-Speed Reverse Lockout Linkage.
Price: $5.00

WIRE RETAINING CLIP - MANUAL TRANS
Product ID: AX41T

Details

Wire Retaining Clip for Manual Transmission Side Cover for the Reverse Light Switch Wire on 3- & 4-Speed Transmissions. Mounts Under Side Cover Retaining Bolts at Rear Top & Rear Upper Locations. Zinc Plated Correct Gauge Steel & Thermo-Plastic Coated for Proper Appearance. Two Wire Retaining Clips Required Per Transmission.
Price: $7.00

Z-BAR BALL STUD BEARING RETAINING WIRE
Product ID: 910

Details

Spring Steel Wire That Secures the Frame Side Ball Stud Bearings in the Z-Bar Tube. Clips Over the Z-Bar Tube & Ends Insert Into Holes on Tube & Into Locking Groove of Bearings #938. One is Required. Reference Chrysler # 2401910

Price: $8.00

Z-BAR BALL STUD BEARINGS
Product ID: 938(1)

Details

Injection Molded in Delrin to Increase the Life & Reduce Friction, Yet Provides Correct Appearance of Nylon. Each Pair Fits Over the Z-Bar Ball Studs & Into the Z-Bar Tube. Two Pair are Required. Reference Chrysler # 2265938

Price: $5.00

Z-BAR BALL STUD RUBBER SEAL
Product ID: 942

Details

Injection Molded in Silicone Rubber for Higher Temperature Resistance & Long Life. Ball Side Lettering Shows Which Direction the Seal is to Be Installed. Keeps Dirt from the Ball Stud Bearings. Two are Required. Reference Chrysler # 2265942

Price: $6.00
