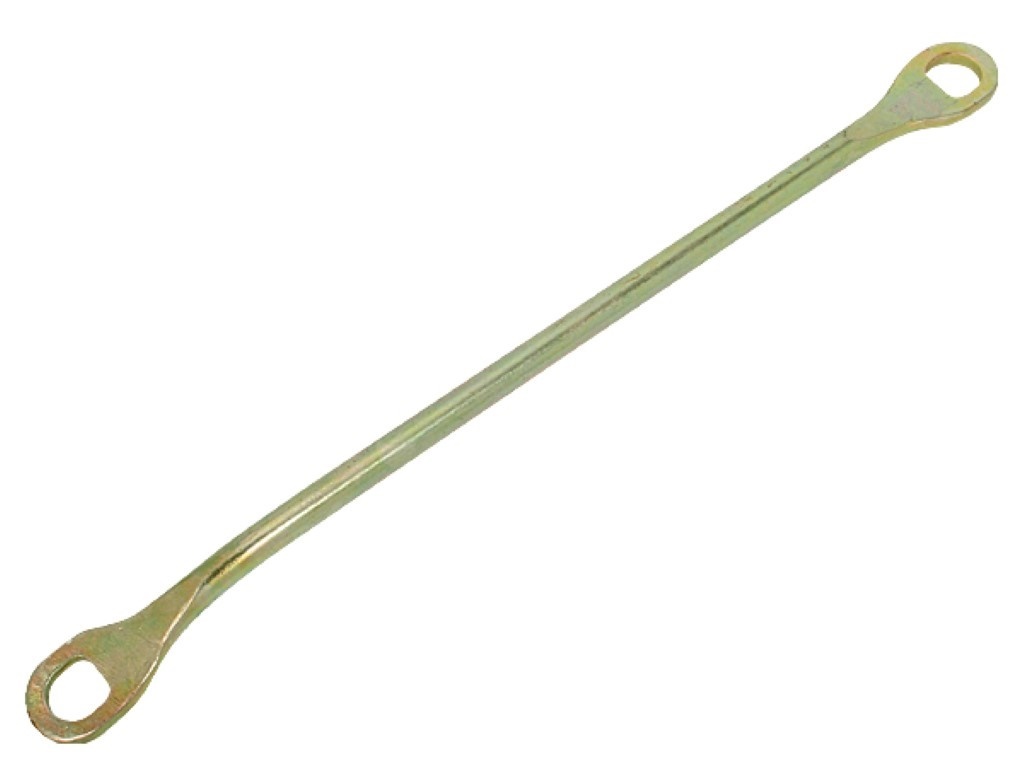

70-74 E-BODY Pedal push Rod
Product ID: 225-PE

Details

New reproduction pedal push rod for E-body vehicles. Replace your old, damaged or missing pedal push rod with our reproductions made to original factory specifications to function just like originals.

Price: $27.00

A,B, E Body Fork Push Rod
Product ID: 225-F

Details

New reproduction fork push rod for A-body, B-body and E-body vehicles. Replace your old, damaged or missing fork push rod with our reproduction made to original factory specifications to function just like originals.
Price: $25.00

CLUTCH BELL CRANK BALL STUD
Product ID: BS-1

Details

Clutch Bell Crank Ball Stud for All Manual Trans Applications. Mounts to the Frame Rail Mounting Bracket. Zinc Plated to Resist Corrosion & Provides Proper Appearance. Includes Mounting Nut & Flat Washer.
Price: $17.00

CLUTCH BELL CRANK BALL STUD
Product ID: BS-2

Details

Clutch Bell Crank Ball Stud for All Manual Transmission B- & E-Body Applications. Mounts to the Bellhousing. Zinc Plated to Resist Corrosion & Provides Proper Appearance.
Price: $17.00

CLUTCH BELL CRANK BALL STUDS
Product ID: BS-1-2

Details

Clutch Bell Crank Ball Studs for All Manual Trans B- & E-Body Applications. the Longer Ball Stud Mounts to the Bellhousing & the Shorter to the Frame Rail Mounting Bracket. Zinc Plated to Resist Corrosion & Provides Proper Appearance. Nut & Flat Washer Included for Mounting to Frame Rail Bracket.
Price: $29.00

CLUTCH BELL CRANK FRAME BRACKET
Product ID: FB001

Details

An Exact Reproduction of the B- & E-Body Factory Frame Rail Mounting Bracket for the Clutch Bell Crank Ball Stud. A Must for Converting an Automatic Trans Car to 4- or 5-Speed.
Price: $25.00

CLUTCH BELL CRANK FRAME BRACKET KIT
Product ID: FBKIT

Details

Comes Complete with B- & E-Body Frame Rail Bracket, Both Ball Studs, Flat Washer & Nut. A Must for Converting an Automatic Trans Car to a 4- or 5-Speed.
Price: $45.00

CLUTCH FORK RETURN SPRING
Product ID: 705

Details

Used on all Big Block applications from 1966-up and Small Block B & E-Body applications.  Heavy duty spring used to keep tension between the clutch fork and adjusting rod.  Reference Chrysler part number 2643705.

Price: $6.00

CLUTCH FORK ROD ADJUSTING NUT
Product ID: 979

Details

Special Purpose Nut Used to Lock the Position of the Clutch Fork Rod Washer & Insulator. Zinc & Wax Finished for the Proper Appearance. After Proper Adjustment is Attained, Use a Hammer & Punch to Depress One of the Nut Shoulder Sections on to the Flat Surface of the Clutch Fork Actuator Rod. One is Required. Refenence Chrysler # 1407347, 6030979

Price: $3.00

CLUTCH FORK ROD INSULATOR
Product ID: 412

Details

Injection molded from high durometer urethane for increased service life & improved clutch pedal feel.  Installs into clutch release fork.  Reference Chrysler part number 2461482, 3467234, 4019412.

Price: $8.95

CLUTCH FORK ROD WASHER
Product ID: 483

Details

Conical Faced Washer That Backs the Clutch Fork Insulator. Finished in Black Oxide as Original. One Required.
Price: $6.00

Clutch Pedal Push Rod Boot
Product ID: 2266783R

Details

New reproduction pedal push rod boot for A-body, B-body, C-body, E-body and Truck vehicles. Replace your old, damaged or missing pedal push rod boot with our reproductions made to original factory specifications to function just like originals.

Price: $7.95

CLUTCH PIVOT SHAFT SERVICE KIT B & E-BODY
Product ID: B/E-ZKIT

Details

Kit Provides All Components Necessary to Service 1966-74 B-Body & 1970-74 E-Body Clutch Pivot Shafts (Z-Bars). Includes Both Frame Side with Nut & Washer & Bellhousing Side Ball Studs, Two Ball Stud Seals, Two Spring Retainers, Two Nylon Cushion Washers, Four Nylon Ball Stud Bearing Halves, & One Pivot Shaft Bearing Retainer Wire.
Price: $65.00

CLUTCH RELEASE ROD
Product ID: 235

Details

Straight Rod Used on 1970-74 E-Body & 1971-74 B-Body Big Block Applications. Zinc Plated as Original.

Price: $25.00

CLUTCH RELEASE ROD
Product ID: 240

Details

Angled Rod Used on 1970-74 E-Body Small Block & 1966-70 B-Body Big & Small Block. Zinc Plated as Original.
Price: $28.00

CLUTCH RELEASE ROD SERVICE KIT
Product ID: 449

Details

Angled Rod Kit Used on 1970-74 E-Body Small Block & 1966-70 B-Body Big & Small Block. Comes Complete with Adjusting Rod, Special Lock Nut, Clutch Fork Return Spring, Nylon Wear Washer, Spring Retainer, Concial Washer, & Clutch Fork Insulator.
Price: $46.00

CLUTCH RELEASE ROD SERVICE KIT
Product ID: 450

Details

Straight Rod Kit Used on 1970-74 E-Body & 1971-74 B-Body Big Block. Comes Complete with Adjusting Rod, Special Lock Nut, Clutch Fork Return Spring, Nylon Wear Washer, Spring Retainer, Conical Washer, & Clutch Fork Insulator.
Price: $43.00

GEARSHIFT CONTROL TORQUE BRACKET-LOWER
Product ID: 60401

Details

Gearshift Control Torque Bracket, Lower w/Auto Trans Floor Shift. Used on 1966-74 A- & C-Body, 1966-70 B-Body, & 1970 E-Body Applications with Automatic Transmission & Floor Shift. Comes Complete with Correct Conical KEPS Nuts & Correct Style Bushing. Mounts to Automatic Transmission Housing & is Necessary for All Floor Mounted Shifter Applications.
Price: $35.00

GEARSHIFT CONTROL TORQUE BRACKET-LOWER-B/E BODY
Product ID: 67717

Details

Gearshift Control Torque Bracket, Lower, w/Auto Trans Floor Shift. Used on 1971-74 B- & E-Body Applications with Automatic Transmission & T-Handle Floor Shift. Comes Complete with Correct Coni KEPS Nuts & Correct Style Bushing. Mounts to Automatic Transmission Housing & is Necessary for All Floor Mounted T-Handle Shifter Applications.
Price: $35.00

GEARSHIFT CONTROL TORQUE SHAFT BUSHING
Product ID: 420

Details

Gearshift Control Torque Shaft Bushing. Used on 1967-74 A-, B-, C-, & E-Body Applications with Automatic Transmission. Two Bushings Required for Both Column & Floor Shifted Automatic Transmission Equipped Cars. Also, Two Bushings Required for 1970 4-Speed Reverse Lockout Linkage.
Price: $5.00

WIRE RETAINING CLIP - MANUAL TRANS
Product ID: AX41T

Details

Wire Retaining Clip for Manual Transmission Side Cover for the Reverse Light Switch Wire on 3- & 4-Speed Transmissions. Mounts Under Side Cover Retaining Bolts at Rear Top & Rear Upper Locations. Zinc Plated Correct Gauge Steel & Thermo-Plastic Coated for Proper Appearance. Two Wire Retaining Clips Required Per Transmission.
Price: $7.00

Z-BAR BALL STUD BEARING RETAINING WIRE
Product ID: 910

Details

Spring Steel Wire That Secures the Frame Side Ball Stud Bearings in the Z-Bar Tube. Clips Over the Z-Bar Tube & Ends Insert Into Holes on Tube & Into Locking Groove of Bearings #938. One is Required. Reference Chrysler # 2401910

Price: $8.00

Z-BAR BALL STUD BEARINGS
Product ID: 938(1)

Details

Injection Molded in Delrin to Increase the Life & Reduce Friction, Yet Provides Correct Appearance of Nylon. Each Pair Fits Over the Z-Bar Ball Studs & Into the Z-Bar Tube. Two Pair are Required. Reference Chrysler # 2265938

Price: $5.00

Z-BAR BALL STUD RUBBER SEAL
Product ID: 942

Details

Injection Molded in Silicone Rubber for Higher Temperature Resistance & Long Life. Ball Side Lettering Shows Which Direction the Seal is to Be Installed. Keeps Dirt from the Ball Stud Bearings. Two are Required. Reference Chrysler # 2265942

Price: $6.00
